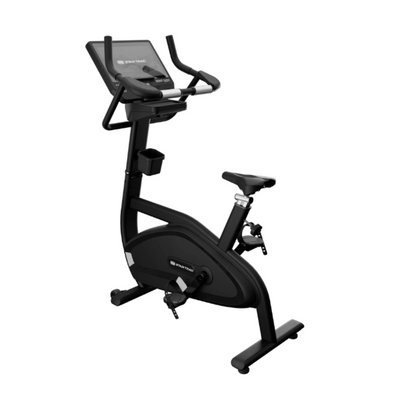

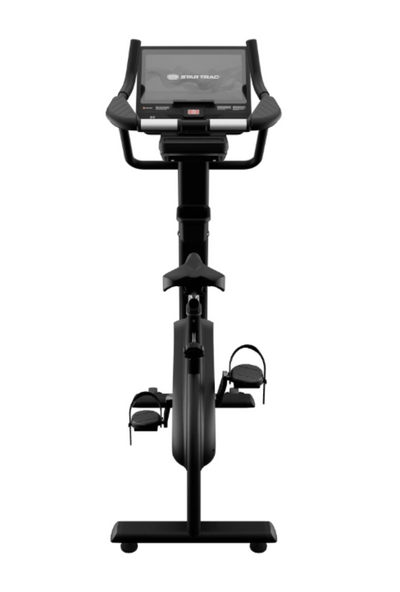

Star Trac 6 Series Upright Bike - Shown with 16"

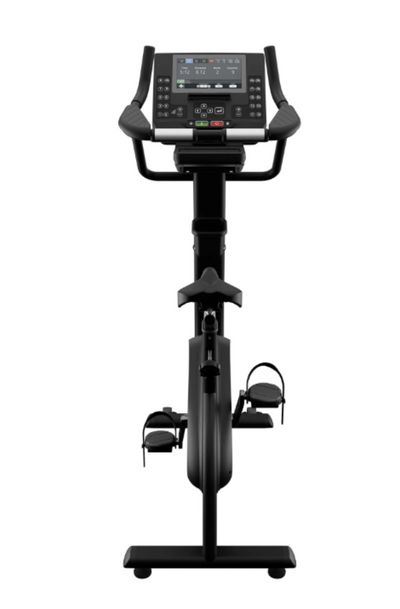

Star Trac 6 Series Upright Bike - Shown with LCD

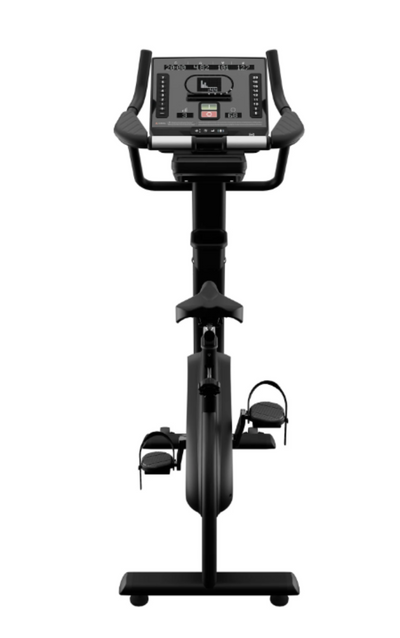

Star Trac 6 Series Upright Bike - Shown with LED

Star Trac 6 Series Upright Bike - Fitness Outlet

Vendor: Star Trac

Star Trac 6 Series Upright Bike

$3,399.00 $3,759.00

Sku: 9-8180-6UB-LCD-60

Product variants

Estimated Delivery 6-10 Days

Share:

Share

6.8K Likes

Pairs well with

Description

Adjustable Riding Position16 pop-pin seat positions

Smooth Resistance20 alternator-driven levels

Convenient ChargingBuilt-in wireless phone charger

Apex Display ChoicesLCD+, LED or 16-inch Touch

Star Trac 6 Series Upright Bike in a fitness setting

COMMERCIAL UPRIGHT EXERCISE BIKE

Star Trac 6 Series Upright Bike: Comfortable, Consistent Cardio

The Star Trac 6 Series Upright Bike (6UB) offers an upright cycling position with a pop-pin seat that adjusts through 16 positions. Integrated elbow pads support a comfortable hand and arm position during longer cardio workouts.

The Star Trac 6 Series Upright Bike fits naturally into hotel gyms, multifamily fitness rooms, university recreation spaces and commercial cardio areas. Its ISIS bottom bracket supports dependable pedal mounting for repeated use, while platform pedals with removable straps offer secure footing for different riders.

With an adjustable riding position and supportive handlebar elbow pads, the bike accommodates both shorter recovery rides and longer aerobic sessions. Upright cycling also engages the rider in a more active seated posture than a reclined recumbent model.

PERFORMANCE AND EVERYDAY CONVENIENCE

Smooth Riding With Useful Fitness Features

The alternator drive system provides 20 resistance levels for steady aerobic sessions and more challenging intervals. Contact and telemetry heart-rate monitoring help riders follow workout intensity without complicating the experience.

Contact and wireless telemetry heart-rate options let riders monitor effort during a workout. A conveniently located bottle holder and wireless charging for compatible phones help keep the essentials within reach in busy shared fitness spaces.

For another style of supported, seated cardio, explore our Recumbent Exercise Bikes collection. You can also browse our Commercial-Grade Exercise Bikes collection when planning a complete cardio area. Detailed dimensions and weight capacity are available in Specifications.

CONNECTED FITNESS OPTIONS

Three Apex Consoles for Different Workout Preferences

The Star Trac 6 Series Upright Bike offers three Apex display choices. The LCD+ is designed for quick, straightforward workout setup, including resistance Quick Keys and an optional personal viewing screen. The LED emphasizes bright, easily scanned training metrics, while the 16-inch Apex Touch opens up a larger interface for connected workouts and compatible entertainment.

The LCD+ and LED options are self-generating, which offers more flexibility when placing equipment away from wall outlets. The touchscreen requires an external power supply. Depending on the chosen display, connected features include Bluetooth workout tracking, software updates, watch pairing and screen mirroring; compare the individual console features below.

Have questions about the Star Trac 6 Series Upright Bike or its console options? Contact our Equipment Specialists for personalized guidance.

The Fitness Outlet is an authorized Star Trac dealer offering genuine, brand-new equipment backed by manufacturer warranties.

Choose your console

Which Star Trac 6 Series Upright Bike Console Is Right for You?

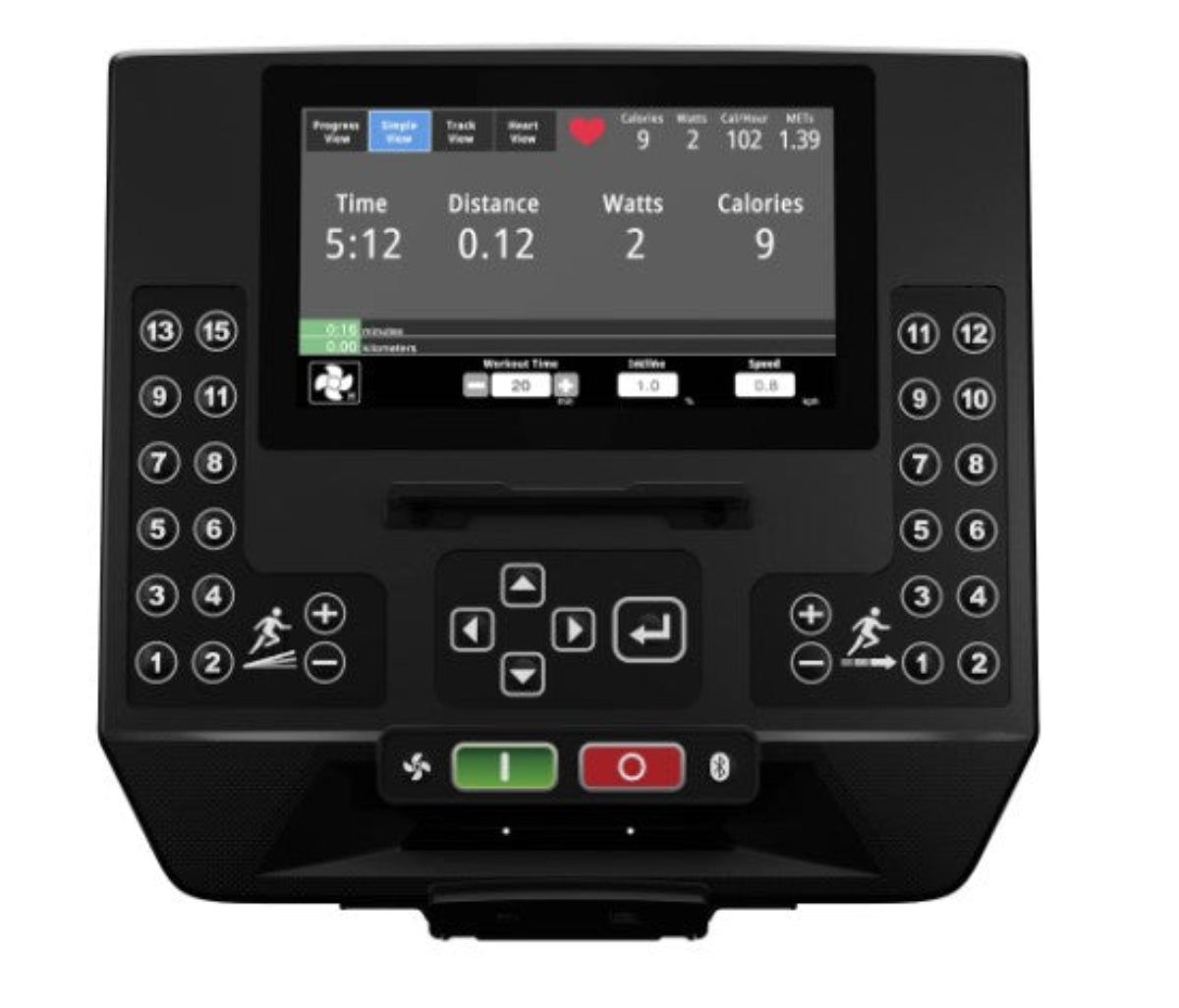

Apex LCD+

Clear workout information and intuitive controls
Quick Keys for resistance adjustments
Bluetooth workout data connectivity
Self-generating operation
Optional PVS compatibility

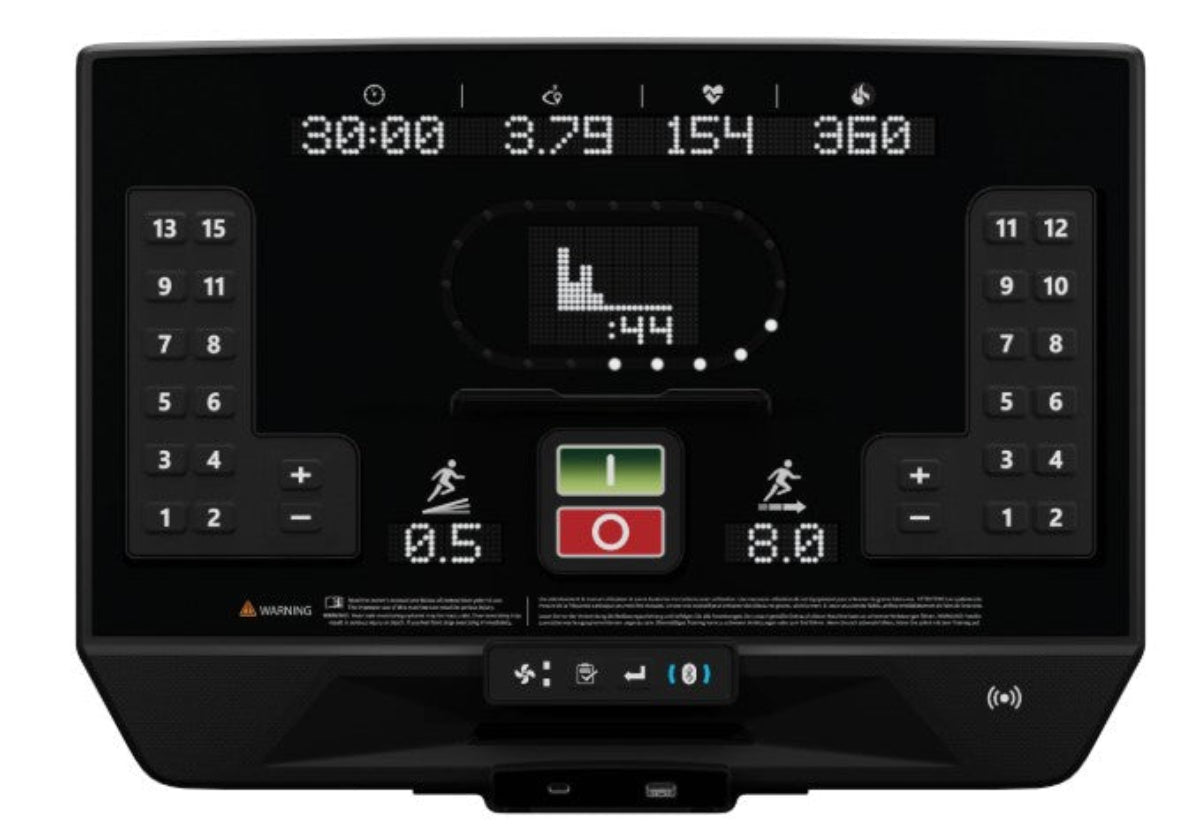

Apex LED

Bright, gym-style LED readouts
Quick Keys for fast adjustments
Bluetooth connectivity for data tracking
Wi-Fi software updates
Self-generating operation

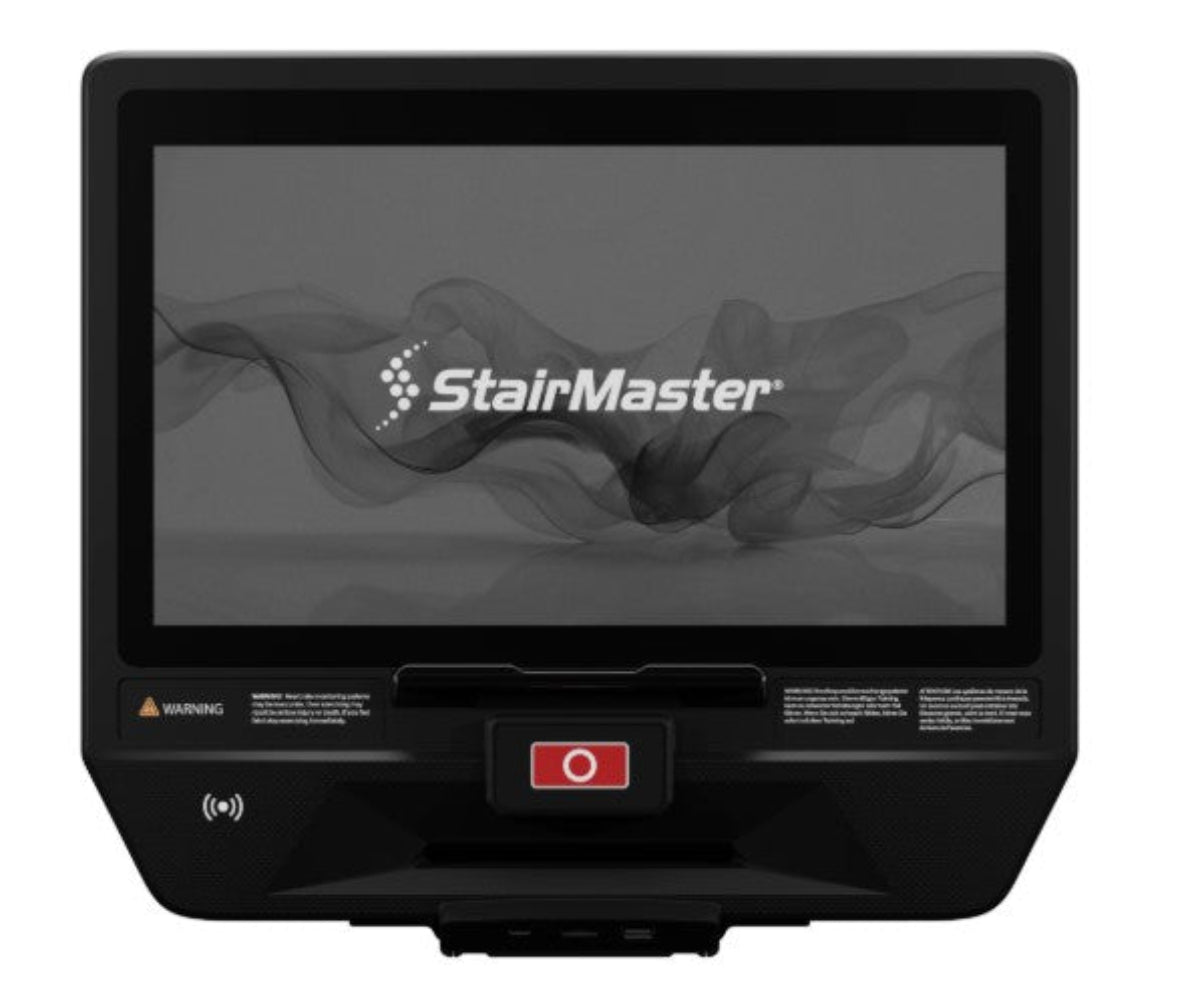

16" Apex Touch

Large interactive touchscreen
Connected workouts and entertainment features
Watch pairing and screen mirroring on supported configurations
Interactive programming and workout tracking
12V / 5A external power required

Commercial Fitness Solutions

Planning a Complete Fitness Room?

From a few pieces of equipment to an entire fitness facility, we can help bring your vision to life.

Complimentary 3D Design
Equipment Packages
Commercial Financing
Personalized Quotes

Explore Commercial Solutions

The Fitness Outlet Advantage

Why Buy From The Fitness Outlet?

Trusted Since 1993Over 30 years of fitness equipment expertise.

Lowest Price GuaranteeCompetitive pricing backed by our price guarantee.

Complimentary DeliveryIncluded on most eligible equipment orders.

Authorized DealerGenuine, brand-new equipment backed by manufacturer warranties.

Specifications

Specifications data

Model: Star Trac 6 Series Upright Bike (6UB)
Console Options: Apex LCD+, Apex LED, or 16-inch Apex Touch
Resistance System: Alternator drive
Resistance Levels: 20
Start-up Watts: 20
Seat Adjustment: Pop-pin, 16 positions
Pedals: One-sided platform pedals with removable straps
Pedal Mounting: ISIS bottom bracket
Heart Rate Monitoring: Contact and telemetric
Wireless Phone Charging: Yes
Additional Features: Elbow pads and water bottle holder
Frame: Powder-coated steel, matte black
Assembled Dimensions: 46 in L x 23 in W x 57 in H (117 x 58 x 145 cm)
Product Weight: 132 lb (60 kg)
Maximum User Weight: 350 lb (159 kg), per 2025 Star Trac 6UB product sheet
Shipping Dimensions: 47.3 in L x 22 in W x 44.2 in H
Shipping Weight: 153.2 lb (69.5 kg)
Power: LCD+ and LED consoles are self-generating; Apex Touch and LCD+/LED with optional PVS require a 12V / 5A supply.

Warranty

Warranty data

Star Trac 6 Series Upright Bike (6UB) — Limited Manufacturer Warranty (United States and Canada)

Commercial — Dues-paying facilities and/or more than 8 hours per day
Structural Frame: 10 years
Parts: 2 years
Labor: 1 year

Light Commercial / Vertical — Non-dues-paying facilities, less than 8 hours per day
Structural Frame: 10 years
Parts: 3 years
Labor: 3 years

Residential — Home use by household occupants only
Structural Frame: 10 years
Parts: 10 years
Labor: 3 years

Structural frame coverage excludes coatings. Warranty applies to the original end-user purchaser and is non-transferable. Manufacturer exclusions and conditions apply. Registration is required; the coverage start date is established by installation registration and cannot be later than one year after Core's original shipment.

Source: Core Health & Fitness Product Warranty Matrix (January 2026).

FAQs

Frequently asked question

Is the Star Trac 6 Series Upright Bike suitable for commercial gyms?

Yes. The 6UB is a commercial upright exercise bike with an alternator resistance system, 20 resistance levels, an adjustable seat, and three Apex console choices. It can suit gyms, hotels, corporate fitness rooms, and multifamily properties. Warranty terms depend on the facility's usage category.

What are the dimensions and maximum user weight?

The assembled bike measures 46 inches long by 23 inches wide by 57 inches high and weighs approximately 132 lb. The 2025 Star Trac 6UB product sheet specifies a maximum user weight of 350 lb (159 kg). Allow additional clearance around the bike for safe access and use.

Does the Star Trac 6UB need to be plugged in?

The Apex LCD+ and Apex LED displays are self-generating. The 16-inch Apex Touch display requires a 12V/5A external power supply. LCD+ or LED configurations with the optional personal viewing screen (PVS) also require external power.

What is the difference between the LCD+, LED, and 16-inch Touch consoles?

All three support workout tracking via Bluetooth and wireless phone charging. LCD+ offers straightforward workout controls and optional PVS; LED offers bright workout readouts; the 16-inch Touch adds an interactive display and supported entertainment and screen-mirroring features. Some connectivity features and accessories vary by console.

What warranty comes with the Star Trac 6 Series Upright Bike?

Published dealer warranty schedules list 10 years on the structural frame for commercial, light-commercial, and residential use. Parts and labor are 2/1 years for commercial use, 3/3 years for light commercial, and 10/3 years for residential use. Coverage excludes frame coatings and is subject to manufacturer terms and qualifying usage.

How adjustable is the riding position?

The 6UB uses a pop-pin seat with 16 height positions. Elbow pads support different riding positions, while one-sided platform pedals have removable straps.

Does the bike support heart-rate monitoring and phone charging?

Yes. The 6UB supports contact and telemetric heart-rate monitoring and includes a wireless charger for compatible phones. Bluetooth workout-data connectivity is available across the Apex console choices.

What should facilities know about installation and maintenance?

Check the 46 x 23 inch floor footprint, the 57 inch overall height, and access clearance before delivery. Plan for a nearby outlet if choosing the 16-inch Touch console or a PVS-equipped configuration. Follow the Star Trac service and cleaning instructions; do not assume maintenance-free operation.
