Vendor: True Fitness

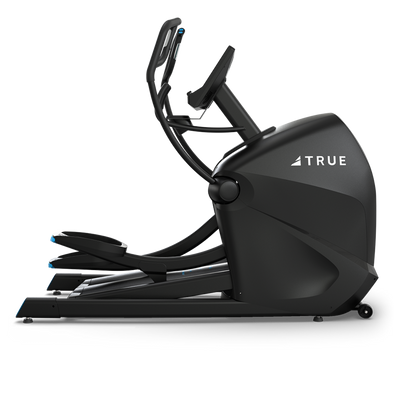

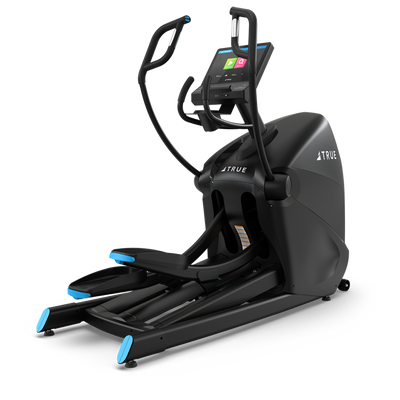

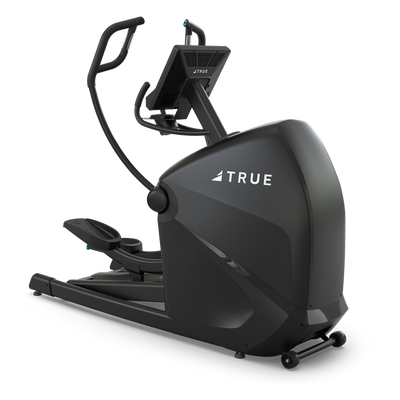

True Fitness Apex Cross Trainer

$9,799.00

Sku:

Product variants

Estimated Delivery in 6–10 Days

Pairs well with

Description

20"–28"

Adjustable Stride Length

SmartStride®

Adaptive Stride Technology

30 Levels

Adjustable Resistance

600 Watts

Maximum Workload

True Fitness Apex Cross Trainer in a premium fitness environment

Advanced Commercial Cardio

Natural, adaptive movement engineered around the human body.

The True Fitness Apex Cross Trainer delivers a premium total-body cardio experience built around precise human biomechanics. Designed to create comfortable movement in both forward and reverse directions, it combines an electronically adjustable stride with smooth resistance and ergonomic upper-body motion. The result is a versatile commercial machine capable of supporting walking, jogging and running-style movement within one compact training station.

SmartStride® technology automatically adjusts the stride length between 20 and 28 inches to complement the user’s movement and pace. This adaptive design allows exercisers of different heights and abilities to find a comfortable range without interrupting their workout. A front-drive system and quiet motor help create a smooth, controlled feel suitable for busy health clubs, hotels, corporate gyms, recreation centers and premium multi-housing facilities.

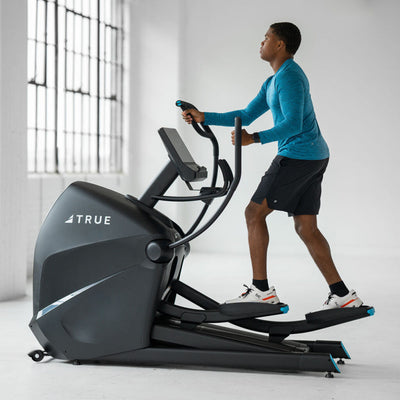

User training on the True Fitness Apex Cross Trainer

Ergonomic Total-Body Exercise

Engage more muscle groups while maintaining natural alignment.

MultiGrip handlebars allow users to change hand position and target different upper-body muscles throughout a workout. The converging path of the exercise arms follows the natural movement of the arms during walking or running, creating a more comfortable and effective total-body training experience. The moving handlebars can also be locked when users want to isolate the lower body or maintain additional stability.

Close 1.8-inch pedal spacing helps keep the feet, knees and hips naturally aligned while reducing unnecessary lateral movement. A low step-up height makes the machine easier to access, while molded footpads provide secure positioning during demanding sessions. Fingertip controls on the moving handlebars allow users to adjust resistance or stride without breaking rhythm.

Electronically adjustable 20-to-28-inch stride range
SmartStride® adapts movement to the user’s pace
MultiGrip handlebars support varied upper-body positions
Covered tracks and rollers enhance safety and reliability

True Fitness Apex Cross Trainer console and commercial construction

Performance Programs and Technology

Powerful programming keeps every workout challenging and engaging.

With 30 resistance levels and a workload range extending up to 600 watts, the Apex Cross Trainer accommodates gentle conditioning, steady endurance work and demanding high-intensity sessions. Advanced programs include 30:30 intervals and MMA-inspired training, alongside hills, distance goals, calorie targets, heart-rate programs and performance-focused workouts.

Facility owners can choose from multiple TRUE UNITE console options, including large touchscreen displays and a streamlined LED console. This flexibility makes it easier to match the equipment to the facility’s technology requirements, member expectations and budget. Contact heart-rate monitoring provides convenient workout feedback, while EcoFit compatibility can support equipment management.

The robotically welded heavy-gauge steel frame is engineered for consistent commercial use. Its hybrid self-generating brake delivers smooth resistance, and the unit can operate without external power when equipped with the LED console. Combining adaptive biomechanics, intuitive controls and durable construction, the Apex Cross Trainer offers a refined cardio experience built for years of performance.

Specifications

Specifications data

Power Source

Self-Generating (100-220V required with non-LED consoles)

Cord Length

12′ / 3.7M

Frame Construction

Robotically Welded Heavy-Gauge Steel

Quick Access Control

Yes, fingertip controls on moving handle bars

Drive System

Front Drive

Resistance Source

Hybrid Self-Generating Brake

Resistance Levels

30

Handlebar Design

Converging Arms

Maximum Workload

40 – 600 watts

Footpad

Molded Footpad

Contact Heart Rate Monitoring

Yes

Asset Management

Ecofit

Quiet Motor

Yes

Electronically Adjustable Stride

Yes

SmartStride® Technology

Yes

Adjustable Stride Length

20″ – 28″ / 51 cm – 71 cm

Pedal Spacing

1.8″ / 4.5 cm

Moving Handlebars Lock Out Option

Yes

Covered Track and Rollers

Yes

MultiGrip and Converging Path Exercise Arms

Yes

Dimensions (L x W x H)

77’’ x 33’’ / 196cm x 84cm

Footprint with Side Steps

87″ x 40″ / 221 cm x 102 cm

Machine Weight

364lbs / 165kg

Shipping Weight

408lbs / 185kg

Shipping Dimensions

74″ L x 30″ W x 35″ H / 188 cm x 76 cm x 89 cm

Maximum User Weight

400 lbs / 181 kg

Portability

2 Front Transport Wheels

Active Footprint

87″ x 37″ / 221cm x 94cm

Warranty

Warranty data

Commercial Warranty -
Frame: 7 Years
Parts: 3 Years
Consoles: 3 Years
Labor: 2 Years
Wear Items: 180 days

Limited-Use Commercial Warranty -
Frame: 7 Years
Parts: 5 Years
Belt and Dock: 5 Years
Consoles: 3 Years
Labor: 3 Years
Wear Items: 180 Days

In-Home Use Warranty -
Frame: 12 Years
Parts: 10 Years
Consoles: 3 Years
Labor: 2 Years
Wear Items: 180 Days

Compare

TRUE Fitness Cross Trainer Comparison
Feature	Apex Cross Trainer	Gravity Cross Trainer
Drive System	Commercial Front Drive	Premium Commercial Front Drive
Stride Length	21" – 23" Adjustable	21" – 23" Adjustable
Resistance Levels	30 Levels	30 Levels
Overall Dimensions	79" L x 34" W x 68" H	79" L x 34" W x 68" H
User Capacity	400 lbs	400 lbs
Frame Type	Commercial Steel Frame	Premium Commercial Steel Frame
Best For	Studios / Training Facilities	Full Commercial Facilities
Console Options	Unite LED / Unite 10" / Unite 16" / Unite 16" with Tuner / Unite 22" / Unite 22" with Tuner	Unite LED / Unite 10" / Unite 16" / Unite 16" with Tuner / Unite 22" / Unite 22" with Tuner
Console Features	LED console or touchscreen entertainment displays with Bluetooth, Wi-Fi, apps, TV tuner options, advanced workout tracking	LED console or touchscreen entertainment displays with Bluetooth, Wi-Fi, apps, TV tuner options, advanced workout tracking
Warranty	Frame: 10 Years / Parts: 3 Years / Labor: 3 Years	Frame: 10 Years / Parts: 3 Years / Labor: 3 Years

FAQs

Frequently asked question

Is the TRUE Fitness APEX Cross Trainer worth the investment compared to other ellipticals?

The APEX stands out with its SmartStride® Technology, which automatically adjusts stride length to match your natural gait — a feature rarely found at this level. It's built for long-term durability, supports rehab and performance training, and delivers a genuinely smooth, full-body workout. If you want a premium elliptical that adapts to you rather than the other way around, the APEX offers strong value for serious users.

What is the warranty on the TRUE Fitness APEX Cross Trainer?

TRUE Fitness is known for offering robust warranty coverage on their commercial-grade equipment. We recommend confirming the specific warranty terms on this product page or contacting our support team directly, as coverage can vary by component — frame, parts, and labor are typically covered separately. Our team is happy to walk you through what's included before you purchase.

What is SmartStride® Technology and how does it work?

SmartStride® Technology automatically adjusts the elliptical's stride length — ranging from 20 inches and beyond — based on how you move. It detects your natural gait and adapts in real time, so the machine moves with your body rather than forcing a fixed motion. This makes it suitable for users of different heights and fitness levels, and especially beneficial for those in rehabilitation or recovery.

Is the TRUE APEX Cross Trainer good for injury rehabilitation?

Yes, the APEX is well-suited for rehab. Its low-impact design reduces stress on joints while the adaptive stride length mirrors natural walking or running mechanics. This helps users maintain cardiovascular fitness and rebuild strength without aggravating injuries. Always consult your healthcare provider before starting a rehab exercise program, but the APEX is frequently recommended for its smooth, forgiving motion.

Does the TRUE APEX Cross Trainer provide a full-body workout?

Absolutely. The APEX features moving handlebars that engage your arms, shoulders, chest, and back while your legs drive the stride. This simultaneous upper and lower body engagement increases calorie burn and improves overall conditioning. Whether you're focused on cardio, muscle endurance, or total-body fitness, the APEX delivers a genuinely comprehensive workout in a single machine.

What type of user is the TRUE Fitness APEX Cross Trainer designed for?

The APEX is designed to serve a wide range of users — from beginners and those recovering from injury to advanced athletes seeking low-impact cross-training. Its adaptive stride and customizable settings mean it grows with your fitness level. It's an especially strong fit for home gym enthusiasts who want commercial-quality equipment and don't want to compromise on comfort, smoothness, or long-term durability.
