Description
40 Resistance LevelsFlexible manual intensity
Quick Key ControlsConvenient preset changes
Easy-Up SeatFast fit adjustments
OpenHub ConsolesLCD or touchscreen choices

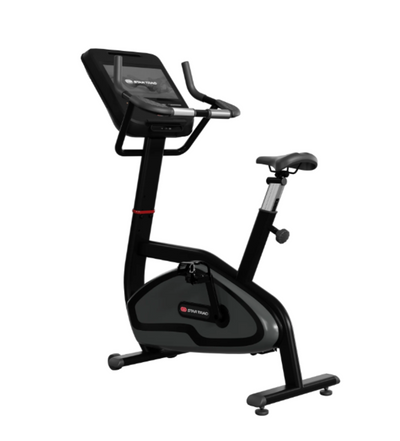

Star Trac 4UB Upright Bike

Purpose-built upright cardio

Star Trac 4UB Upright Bike for Shared Fitness Facilities

The Star Trac 4 Series Upright Bike offers an approachable cycling experience for hotel gyms, multifamily fitness centers and corporate wellness spaces. Its compact footprint makes it practical where multiple cardio stations share a room.

The Easy-Up seat adjustment system lets riders change seat height quickly. Racing-style handlebars with elbow supports provide multiple hand positions, while Soft Trac pedals and adjustable straps help users find a comfortable pedaling position.

With 40 resistance levels and Quick Key controls, the Star Trac 4UB gives riders convenient control over workout intensity, from steady-paced cardio to more challenging intervals.

Select the right display

Star Trac 4UB OpenHub Console and Training Features

The Star Trac 4UB Upright Bike is available with a 10-inch LCD, 10-inch touchscreen or 16-inch touchscreen. These options let facilities choose a straightforward workout display or a larger interactive interface.

Depending on the selected console, riders can view workout information and adjust resistance using the bike's console controls. Contact and telemetry heart-rate monitoring, a personal fan and USB charging add everyday convenience.

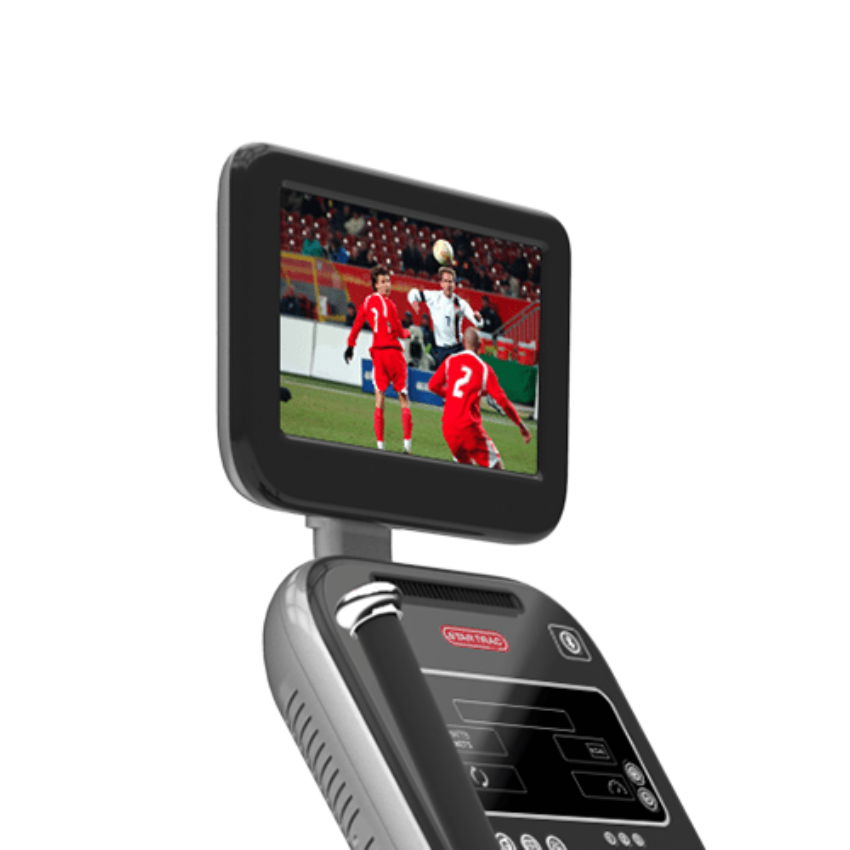

The 10-inch LCD configuration supports self-generating operation. Touchscreen and optional entertainment configurations may require an external power supply; verify the electrical requirements for the exact console ordered.

Star Trac 4 Series Upright Bike
Star Trac 4 Series Upright Bike in a shared fitness room

Best-fit applications

Who the Star Trac 4 Series Upright Bike Is Best For

The Star Trac 4UB is designed for eligible light-commercial environments, including hospitality, apartment and condominium fitness rooms, and corporate wellness facilities. It is a useful choice when a facility wants an upright riding position, intuitive controls and multiple console options.

For a seated alternative with a walk-through frame, compare the Star Trac 4RB Recumbent Bike. You can also explore upright exercise bikes and commercial exercise bikes for other configurations.

The Fitness Outlet is an authorized Star Trac dealer offering product guidance, delivery options and manufacturer warranty support.

Choose your console

Which Star Trac 4UB Console Is Right for You?

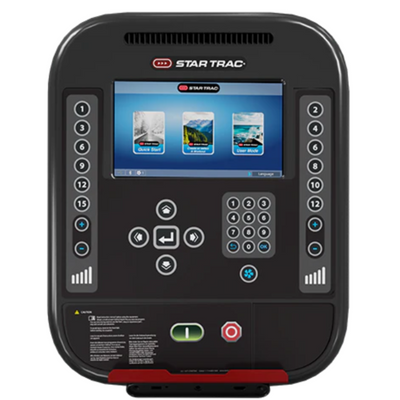

10-inch LCD

Best for straightforward workout feedback.

  • Full-color non-touch LCD display
  • Quick Start and workout program selection
  • Workout metrics and resistance readouts
  • Self-generating operation

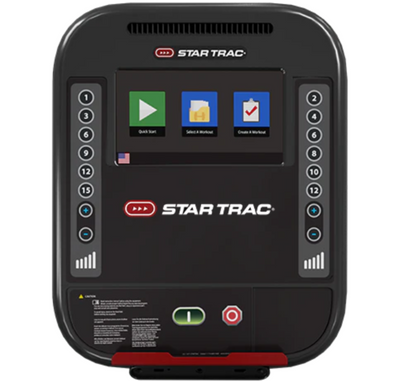

10-inch Touchscreen

Best for a compact interactive display.

  • Touchscreen workout navigation
  • Quick Start and on-screen workout selection
  • Multiple workout display views
  • USB charging; external power required

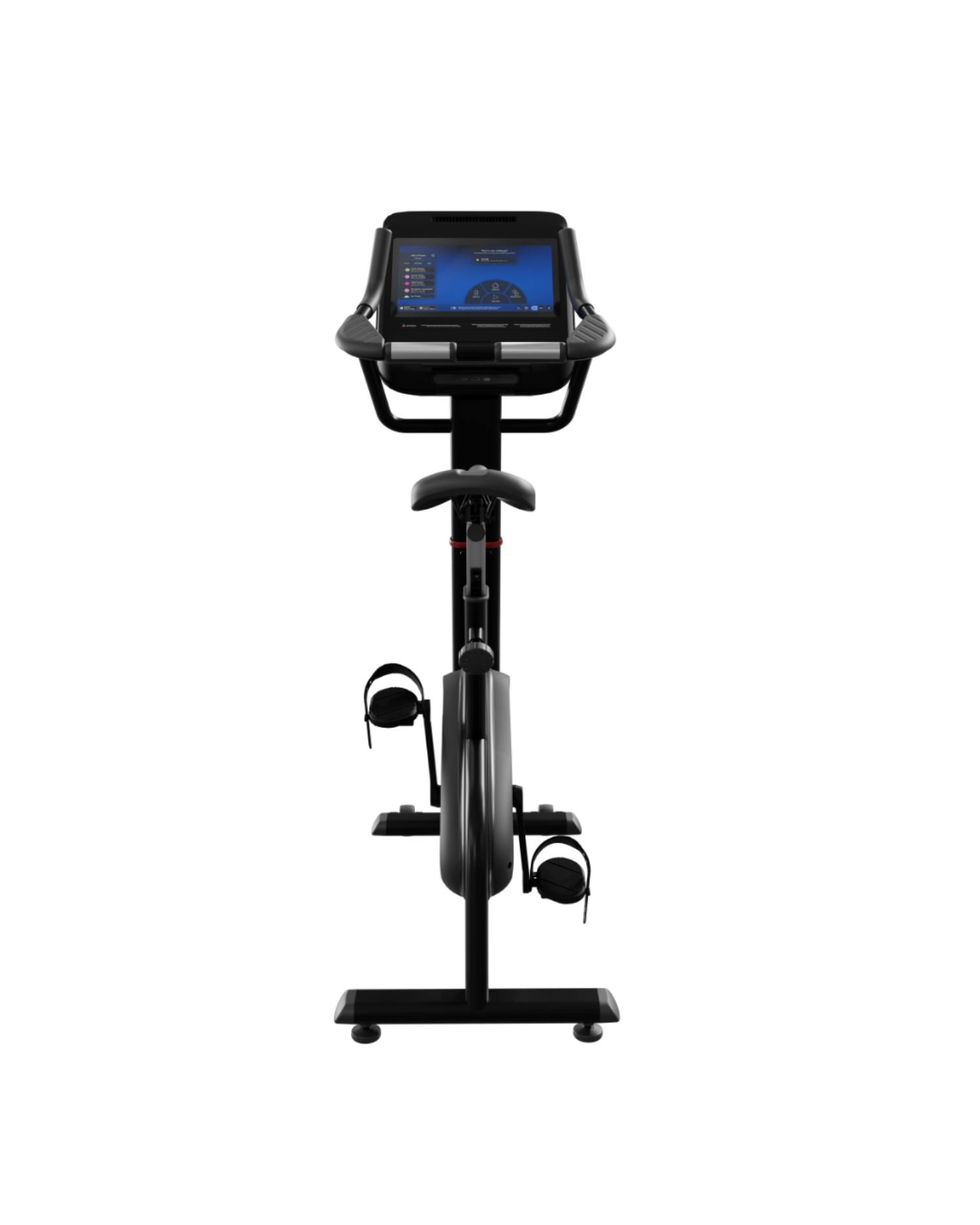

16-inch Touchscreen

Best for a larger interactive experience.

  • Larger touchscreen display
  • Interactive workout navigation
  • Connected features vary by configuration
  • External power required
The Fitness Outlet Advantage

Why Buy From The Fitness Outlet?

Trusted Since 1993Over 30 years of fitness equipment expertise.
Lowest Price GuaranteeCompetitive pricing backed by our price guarantee.
Complimentary DeliveryIncluded on most eligible equipment orders.
Authorized DealerGenuine, brand-new equipment backed by manufacturer warranties.
Specifications
Specifications data
Category Details
Dimensions (L x W x H) 46" x 23" x 57" (117 x 58 x 145 cm)
Product Weight 132 lb (60 kg)
Maximum User Weight 450 lb (204 kg)
Resistance Levels 40
Frame Powder-coated steel
Seat Adjustment Easy-Up system
Pedals Soft Trac pedals with adjustable straps
Handlebars Racing-style with elbow supports
Console Options 10" LCD, 10" touchscreen, 16" touchscreen (current product variants)
Heart Rate Monitoring Contact grips and telemetry compatible
USB Charging Integrated
Personal Fan Included
Power Requirements LCD self-generating; touchscreen/PVS configurations may require external power
Warranty Information
Warranty information
Star Trac 4 Series Upright Bike
FAQs
Frequently asked question

What is the Star Trac 4UB Upright Bike's maximum user weight?

The Star Trac 4 Series Upright Bike supports a maximum user weight of 450 lb (204 kg). The bike itself weighs approximately 132 lb (60 kg).

What are the dimensions of the Star Trac 4 Series Upright Bike?

The Star Trac 4UB measures approximately 46 inches long, 23 inches wide and 57 inches high.

How many resistance levels does the Star Trac 4UB offer?

The Star Trac 4UB Upright Bike has 40 resistance levels, with Quick Key controls for convenient intensity changes.

Which consoles are available on the Star Trac 4UB?

Current product variants include a 10-inch LCD, a 10-inch touchscreen and a 16-inch touchscreen. Older manufacturer documents may show a 15-inch embedded console; verify the specific console selected.

Does the Star Trac 4 Series Upright Bike need to be plugged in?

The 10-inch LCD configuration supports self-generating operation. Touchscreen or optional entertainment configurations may require external power. Confirm electrical requirements for the exact console.

Is the Star Trac 4UB suitable for hotel or apartment gyms?

The Star Trac 4UB is intended for eligible light-commercial settings such as non-dues-paying hospitality, apartment and corporate fitness rooms that meet the manufacturer's use limitations.

What is the Star Trac 4UB warranty?

For eligible light-commercial use, published coverage includes a limited 10-year structural frame warranty, 5 years on other component parts and 2 years labor. For residential use, published terms include a limited 10-year structural frame warranty, 10 years parts and 3 years labor for other components. Manufacturer exclusions and eligibility conditions apply.

What features help users adjust the Star Trac 4UB Upright Bike?

The Easy-Up seat adjustment, racing-style handlebars with elbow supports, Soft Trac pedals and adjustable straps help riders customize their position and workout.
