Spirit Fitness Rehab 8.5S Recumbent Stepper

Vendor:Spirit Fitness

Spirit Fitness Rehab 8.5S Recumbent Stepper

Q: How does the Spirit Fitness 8.5S Recumbent Stepper compare to other recumbent steppers in its class? The 8.5S stands out in the rehab recumbent stepper category by combining features rarely found together on a single platform: a self-adjustable linear step range from 1" to 12.5" to match individual range of motion, simultaneous coordinated leg and arm motion for full-body training, ADA compliance with a fully removable seat for direct wheelchair access, a 360-degree swivel high-density foam seat, 50 levels of resistance with three workload modes (Constant Power, Isokinetic, Constant Resistance), oversized cushioned foot pedals with adjustable stabilization straps, and a 10" touchscreen tablet console with neuro-rehab programs and a dedicated Steps Target program. For clinics needing low-impact full-body conditioning across a wide range of patient capabilities, it offers a level of versatility typically reserved for higher-tier rehab equipment.

Who is the Spirit Fitness 8.5S Recumbent Stepper best for? The 8.5S is best for clinical and supervised rehab environments serving patients who can't tolerate weight-bearing or rotational pedaling motion — including PT and OT clinics, stroke and neurological rehab, cardiac rehab, post-orthopedic recovery (hip, knee, ankle), spinal cord injury programs, older adult wellness centers, and adaptive fitness facilities. Its removable seat, swivel design, foot straps, low starting resistance, and full-body coordinated motion make it especially well-suited for wheelchair users, patients with severe balance or joint limitations, and individuals rebuilding motor coordination after stroke or injury.

$7,949.00 $8,949.00

Sku: 785545

Product variants

Estimated Delivery 6-10 Days

Share:

Share

Pairs well with

Description

Spirit Fitness 8.5S Recumbent Stepper

The Spirit Fitness 8.5S Recumbent Stepper is purpose-built for rehabilitation, neurological therapy, and low-impact total-body conditioning. Designed with ADA-compliant accessibility, customizable motion, and advanced therapy-focused programming, the 8.5S delivers safe, effective exercise for users of all mobility levels.

Featuring coordinated upper- and lower-body movement, adjustable step range, and direct wheelchair accessibility, this commercial-grade recumbent stepper is ideal for rehabilitation clinics, wellness centers, senior fitness facilities, and medical environments.

ADA-Compliant & Wheelchair Accessible

Designed for accessibility and ease of use.

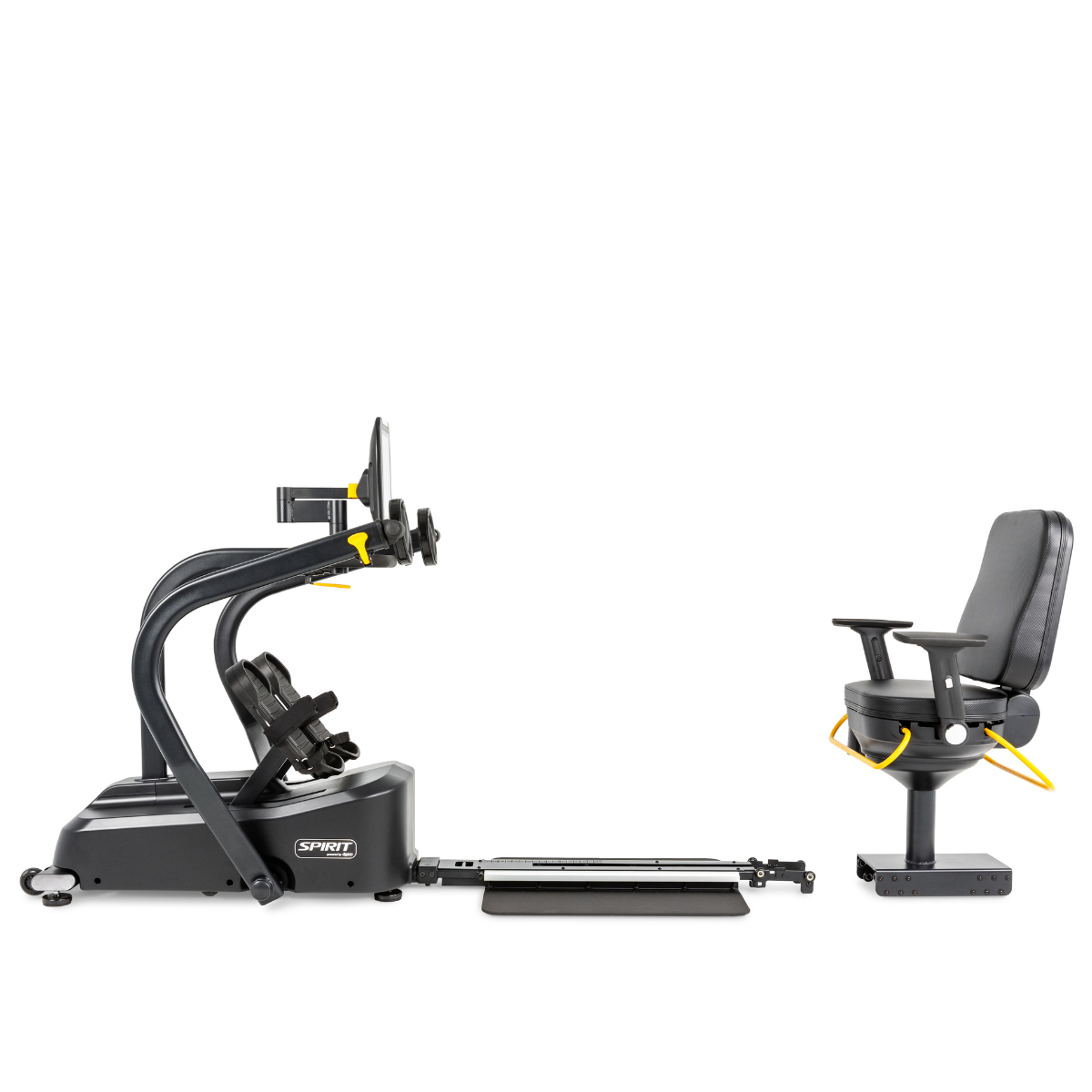

Removable seat for direct wheelchair access
ADA-compliant design supports inclusive training environments
Secure semi-recumbent positioning enhances user safety and stability

Low-Impact Full-Body Motion

The 8.5S promotes smooth, coordinated movement patterns.

1:1 linear arm and leg motion for balanced full-body exercise
Gentle on knees, hips, and ankles
Self-adjusting stroke length adapts to each user’s range of motion

Perfect for rehabilitation, recovery, and low-impact cardio conditioning.

Advanced Rehabilitation & Neurological Training

Built with specialized therapy-focused features.

Symmetry Training Program

Designed to help improve balance and coordination.

Measures left/right leg power output
Assists patients with bilateral deficiencies
Ideal for stroke recovery and post-operative rehabilitation

Neurological Rehabilitation Features

Supports a variety of rehab and therapy protocols with customizable resistance and motion control.

Smooth Magnetic Resistance System

The advanced magnetic resistance system provides precise and comfortable performance.

50 resistance levels
Low startup resistance for rehabilitation users
Smooth, quiet operation with accurate workload control

Adjustable Step Range

Customize movement patterns to individual therapy needs.

Adjustable linear step range from 1” to 12.5”
Accommodates different mobility and flexibility levels
Helps support progressive rehabilitation programs

Rotating Hand Grips & Coordinated Arm Motion

Designed for comfort and adaptability.

Large rotating hand grips reduce wrist and shoulder strain
Adjustable arm motion supports upper-body therapy
Arms can be used independently or together with pedals

Supportive Seating & Stabilization

Comfort and safety remain central to every session.

360-degree swivel high-density foam seat
Fore/aft and recline angle adjustments
Oversized cushioned pedals with stabilization straps
Assistive hand grips for easier transfers

Interactive 10.1” Touchscreen Console

The large touchscreen console provides intuitive controls and advanced training options.

Console Features

10.1” touchscreen display
Bluetooth & ANT+ heart rate compatibility
Cloud analytics integration
Cardiac stress test connectivity
USB Type-B data transfer port

Workout Programs

Manual
Timer
Hill
Plateau
HIIT
Facility Mode
Heart Rate Target
Calories Target
METs Target
Steps Target
Wingate Test

Commercial-Grade Construction

Built for high-use rehabilitation and fitness environments.

Heavy-duty commercial steel frame
Durable powder-coated finish
Supports users up to 440 lbs

Convenience Features

Wireless heart rate monitoring
Dual cup holders
Transport wheels
Assistive hand grips

Ideal For

Rehabilitation clinics
Physical therapy centers
Senior wellness programs
Neurological recovery training
Inclusive fitness facilities
Low-impact full-body cardio training

The Spirit Fitness 8.5S Recumbent Stepper combines accessibility, therapeutic functionality, and commercial-grade durability to create a highly adaptable rehabilitation and fitness solution for users of all abilities.

Specifications

Specifications data

Dimensions:
86.6” L × 33.8” W × 44.4” H

Machine Weight:
332.7 lbs

Max User Weight:
440 lbs

Recommended User Height:
4’10” – 6’6”

Power:
120V / 15 AMP

Warranty

Warranty data

Parts: 5 Years
Labor: 1 Year

*Prisons and correctional facilities are excluded from warranty coverage.

Compare

Feature	Spirit Fitness Rehab 7.0S Recumbent Stepper	Spirit Fitness Rehab 7.5S Recumbent Stepper	Spirit Fitness Rehab 8.5S Recumbent Stepper
Best For	Physical therapy, senior fitness, rehabilitation, and low-impact cardio	Rehabilitation clinics, wellness centers, and users wanting upper and lower body training	Advanced rehabilitation, sports recovery, medical facilities, and premium rehab environments
Resistance Levels	20 Levels	20 Levels	20 Levels
Stride Motion	Low-impact linear stepping motion	Low-impact linear stepping motion	Low-impact linear stepping motion
Upper Body Training	No	Yes – Moving upper-body handles included	Yes – Premium moving upper-body handles included
Seat Type	Adjustable swivel seat	Adjustable swivel seat	Premium adjustable swivel seat
Accessibility	Step-through design for easier entry and exit	Step-through design for easier entry and exit	Enhanced accessibility and rehab-focused design
Console Display	Bright LED display	Enhanced LED display	Premium multi-window LED display
Workout Programs	Standard preset rehab and cardio programs	Expanded preset rehab and cardio programs	Advanced rehab-focused workout programs
Heart Rate Monitoring	Contact and wireless heart rate monitoring	Contact and wireless heart rate monitoring	Contact and wireless heart rate monitoring
Bluetooth Connectivity	Yes	Yes	Yes
Maximum User Weight	450 lbs	450 lbs	500 lbs
Power Requirements	Standard residential/commercial outlet	Standard residential/commercial outlet	Standard residential/commercial outlet
Machine Weight	Approx. 210 lbs	Approx. 240 lbs	Approx. 275 lbs
Commercial Warranty	Lifetime frame / 10 years brake / 5 years parts / 2 years labor	Lifetime frame / 10 years brake / 5 years parts / 2 years labor	Lifetime frame / 10 years brake / 5 years parts / 2 years labor
Key Advantage	Excellent entry-level rehabilitation stepper with simple operation	Adds full upper-body engagement for total-body rehab workouts	Most advanced rehab model with higher capacity and premium features

FAQs

Frequently asked question

How does the Spirit Fitness 8.5S Recumbent Stepper compare to other recumbent steppers in its class?
The 8.5S stands out in the rehab recumbent stepper category by combining features rarely found together on a single platform: a self-adjustable linear step range from 1" to 12.5" to match individual range of motion, simultaneous coordinated leg and arm motion for full-body training, ADA compliance with a fully removable seat for direct wheelchair access, a 360-degree swivel high-density foam seat, 50 levels of resistance with three workload modes (Constant Power, Isokinetic, Constant Resistance), oversized cushioned foot pedals with adjustable stabilization straps, and a 10" touchscreen tablet console with neuro-rehab programs and a dedicated Steps Target program. For clinics needing low-impact full-body conditioning across a wide range of patient capabilities, it offers a level of versatility typically reserved for higher-tier rehab equipment.

Who is the Spirit Fitness 8.5S Recumbent Stepper best for?
The 8.5S is best for clinical and supervised rehab environments serving patients who can't tolerate weight-bearing or rotational pedaling motion — including PT and OT clinics, stroke and neurological rehab, cardiac rehab, post-orthopedic recovery (hip, knee, ankle), spinal cord injury programs, older adult wellness centers, and adaptive fitness facilities. Its removable seat, swivel design, foot straps, low starting resistance, and full-body coordinated motion make it especially well-suited for wheelchair users, patients with severe balance or joint limitations, and individuals rebuilding motor coordination after stroke or injury.

What clinical applications is the Spirit 8.5S designed for?
The 8.5S is designed for stroke and neurological recovery, cardiac rehab, post-orthopedic conditioning (hip, knee, ankle, low back), upper and lower extremity coordination training, balance and gait support, and supervised exercise prescription for deconditioned, older, or wheelchair-using patients. The combination of adjustable stroke length, low starting resistance, and Steps Target programming makes it suitable from very-early-stage therapy through later progressive conditioning.

What does the self-adjustable 1"–12.5" stroke length mean, and why does it matter?
The stroke length is the distance each foot pedal and handle travels through a single push. The 8.5S self-adjusts from a 1" near-stationary movement (useful for patients with severe stiffness, post-surgical restrictions, or contractures) up to a 12.5" full-range stride (for advanced rehab and conditioning). This lets a single machine accommodate everyone from a Day 1 post-stroke patient to a returning athlete without changing equipment.

What workload modes does the 8.5S offer for varying patient needs?
The 8.5S includes three workload modes: Constant Power (maintains a target wattage regardless of cadence — ideal for clinical dosing), Isokinetic (controls speed/cadence for joint-safe loading), and Constant Resistance (traditional torque-based effort). Combined with 50 magnetic resistance levels, this lets clinicians prescribe everything from gentle range-of-motion work to demanding stress-test efforts on the same machine.

How does the 8.5S support coordinated arm and leg training for neurological rehab?
The 8.5S uses round articulating handles linked to the foot pedals, so each push of a leg is synchronized with a pull of the opposite arm — mimicking the natural cross-pattern coordination used in walking. This is particularly valuable in stroke and neurological rehab, where retraining left/right and upper/lower coordination is a primary therapeutic goal.
