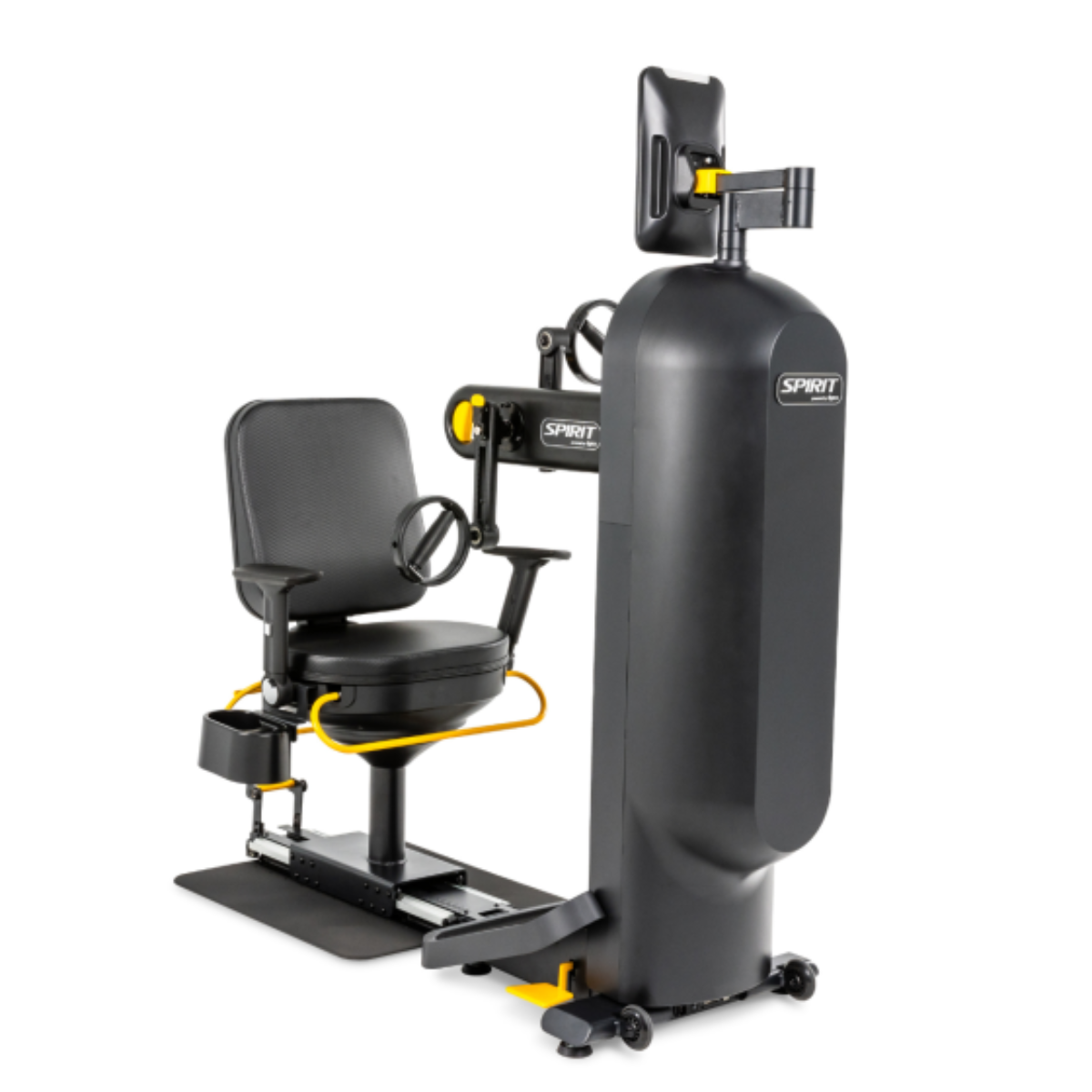

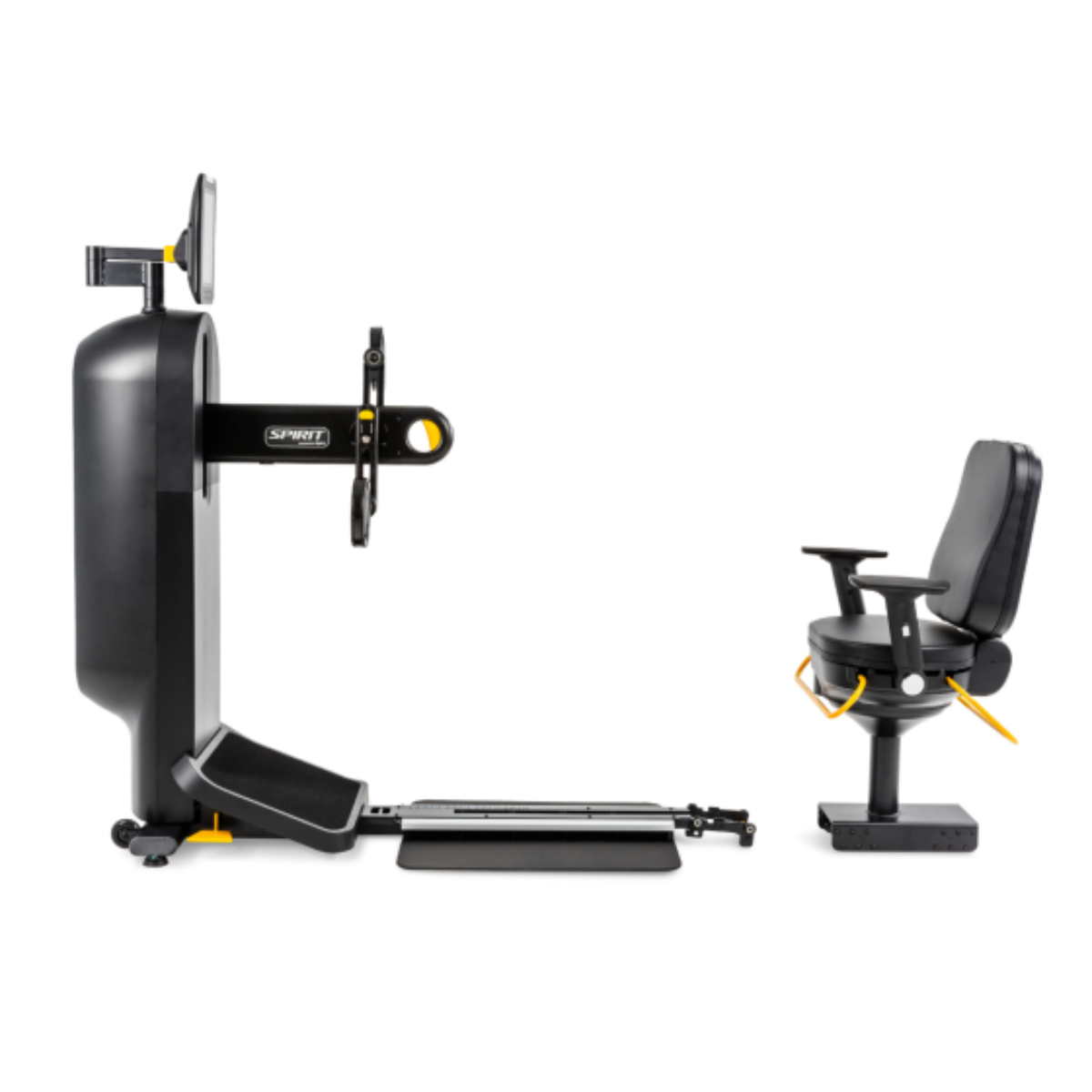

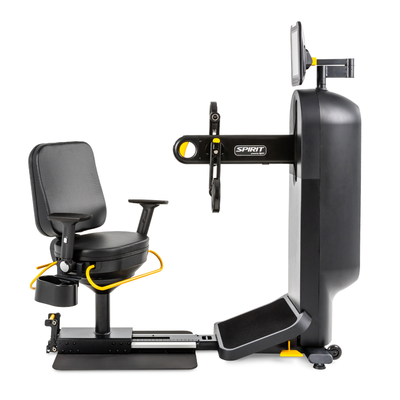

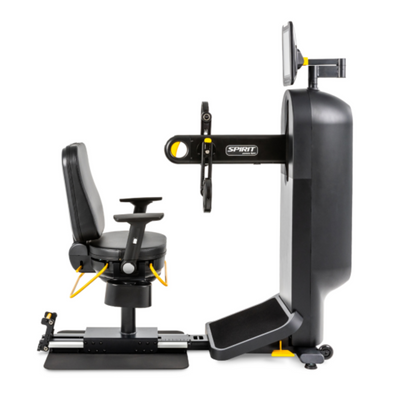

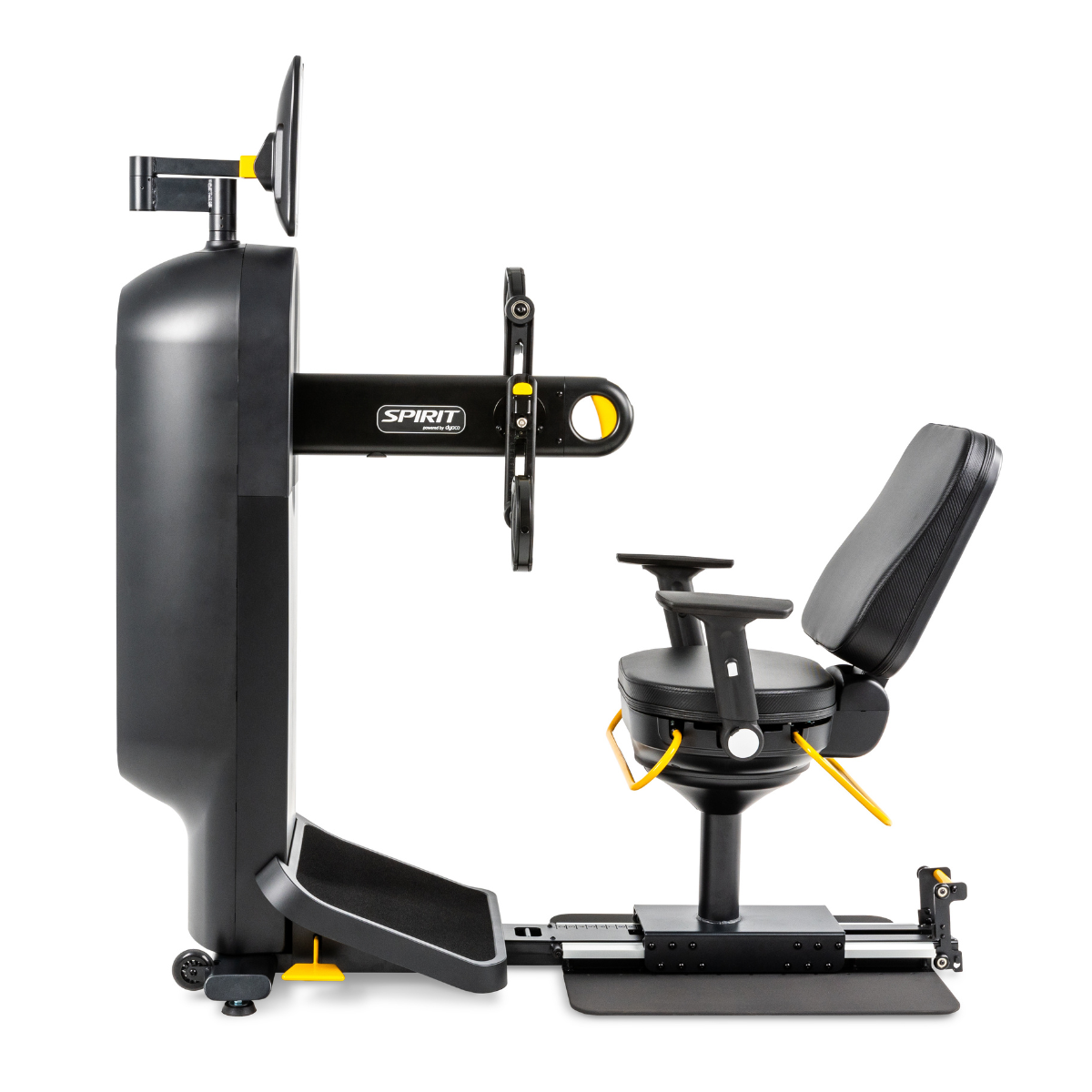

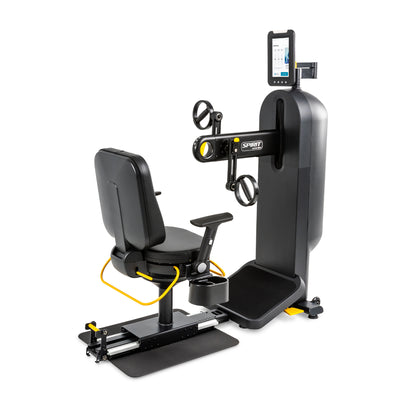

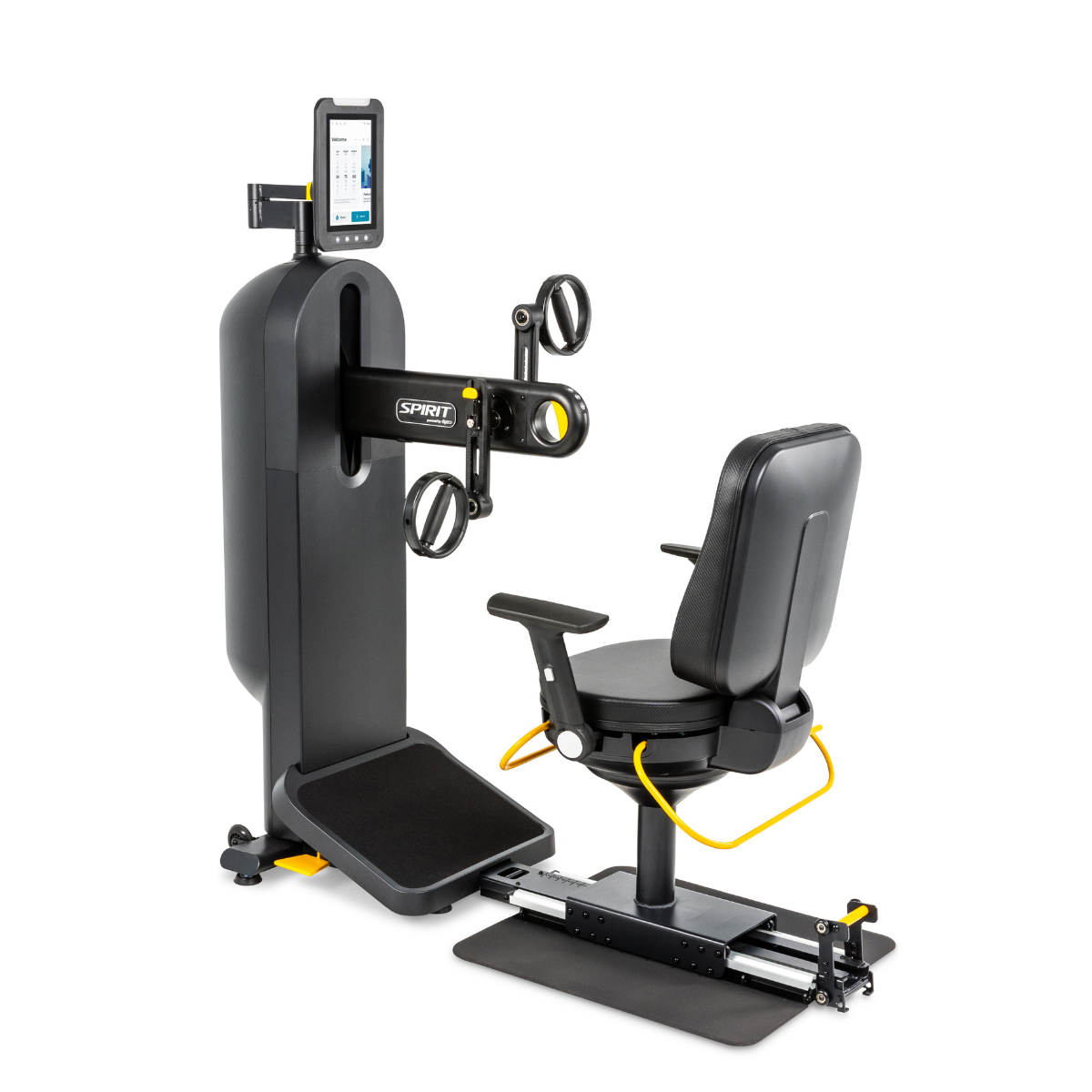

Spirit Fitness 8.5UE Upper Body Ergometer

How does the Spirit Fitness 8.5UE Upper Body Ergometer compare to other upper body ergometers in its class?
The 8.5UE stands out in the rehab and clinical UBE category by combining features rarely found together on a single platform: ADA-compliant access with a fully removable seat for direct wheelchair entry, a 360-degree swivel high-density foam seat with fore/aft and seat-back-angle adjustment, an adjustable crank length to match individual range-of-motion needs, a state-of-the-art magnetic resistance system with a very low start-up threshold and 50 levels, three workload modes (Constant Power, Isokinetic, and Constant Resistance), and a 10" touchscreen tablet console with built-in clinical protocols including Wingate, Steep Ramp, Conconi, and Power Distribution. For clinics needing precise, low-impact upper-body conditioning across a wide range of patient capabilities, it delivers a level of versatility and protocol depth typically reserved for higher-tier rehab equipment.

Who is the Spirit Fitness 8.5UE Upper Body Ergometer best for?
The 8.5UE is best for clinical and supervised rehabilitation environments where upper-body conditioning needs to accommodate a wide range of patient capabilities — including PT and OT clinics, stroke and neurological rehab programs, spinal cord injury rehab, cardiac rehab, occupational health, and adaptive fitness facilities. Its ADA compliance, removable seat for direct wheelchair access, adjustable crank length, very low starting resistance, and 360-degree swivel seat make it especially well-suited for wheelchair users, post-surgical patients, individuals with limited shoulder mobility, and adaptive athletes.

What workload modes and resistance options does the 8.5UE offer?
The 8.5UE uses a magnetic resistance system with 50 levels and a very low start-up threshold, delivering smooth, precise loading from gentle range-of-motion work to demanding clinical efforts. Three workload modes are available: Constant Power (maintains target wattage regardless of cadence), Isokinetic (controls cadence/speed for joint-safe loading), and Constant Resistance (traditional torque-based effort).

How does the 8.5UE accommodate wheelchair users and patients with limited mobility?
The 8.5UE is ADA-compliant and engineered for direct wheelchair access. The seat is fully removable, so users can roll up to the machine in their own chair, and the 360-degree swivel seat (with fore/aft and seat-back-angle adjustments) lets ambulatory patients position themselves comfortably without strain. Round articulating handles and adjustable crank length further allow the motion path to be tuned to each patient's range of motion.

What clinical and testing protocols are built into the 8.5UE console?

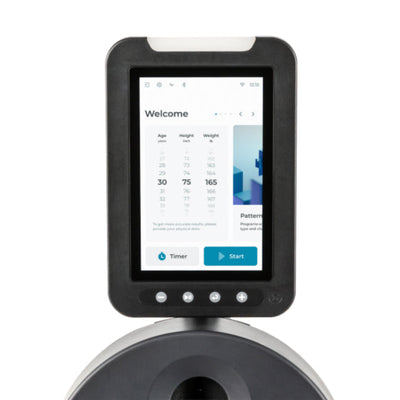

The 10.1" touchscreen tablet console includes Manual, Timer, Hill, Plateau, HIIT, Facility, Heart Rate Target, Calories Target, METs Target, Wingate Test, Steep Ramp Test, Conconi Test, and Power Distribution. Bluetooth and ANT+ wireless heart rate monitoring are built in (heart rate devices not included), and cloud analytics support session tracking across patients.

What warranty coverage comes with the Spirit Fitness 8.5UE?
The 8.5UE is backed by the US Warranty: 5 years on parts and 1 year on labor (prisons and correctional facilities are excluded from coverage). This matches Spirit's commercial-tier rehab coverage and reflects the machine's intended use in daily clinical and institutional settings.

How does the adjustable crank length on the 8.5UE benefit patients with limited range of motion?
The adjustable crank length lets clinicians shorten or lengthen the throw of each pedal/handle stroke to match a patient's individual range of motion at the shoulder and elbow. Shorter cranks reduce strain for post-surgical or stiff shoulders and make the motion accessible to patients who can't yet tolerate a full rotation, while longer cranks support stronger, late-stage rehab and conditioning work — all without changing machines.
